PX yakatevedzana miniature yazvino geared mota

Tsanangudzo Pfupi

Product Detail

Product Tags

Overview

J-SZ(ZYT) -PX akatevedzana madiki DC geared motors akateedzana anoumbwa neSZ(ZYT) akateedzana DC motors uye PX mhando yakajairwa mapuraneti anoderedza, uye akashongedzerwa nemagetsi emagetsi, anogona kuona isina nhanho yekumhanya mutemo.Yakakura gadziriso renji, saizi diki, huremu huremu, kunyatsoshanda, compact chimiro, hombe yekuburitsa torque, inoshandiswa zvakanyanya mumadhiraivha anoda yakaderera kumhanya, yakakwira torque, uye isina nhanho yekumhanya mutemo.Kuchinja kusingapere.
PX yakatevedzana mapuraneti giya anoderedza anogona kubatanidzwa zvakananga kune AC motors, stepper motors uye mamwe mota.
PX nhevedzano inogona zvakare kubatanidzwa zvakananga kune worm giya inoderedza uye cycloidal pinwheel inoderedza kuti igadzire zvinoderedza zvine akasiyana masipidhi ratios kana makuru ekumhanya mareshiyo.

Reducer Model Instruction

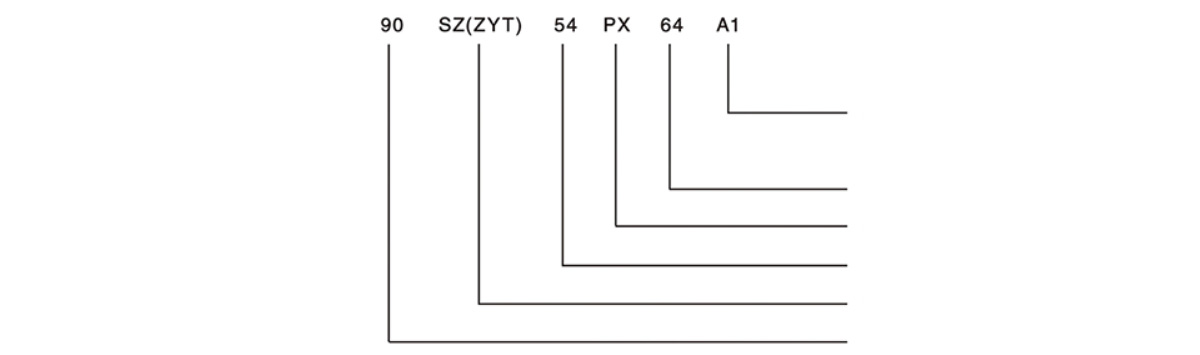

Motokari Model

A1- fomu yekuisa: A1 kuisirwa tsoka, A3 kuisirwa flange, B5 inotenderedza flange kuisirwa
64 -Kuderedza reshiyo: 1:64
PX - Ordinary Precision Planetary Reducer
54 - Motor performance parameter kodhi
SZ(ZYT ) - DC Servo Motor (Permanent Magnet DC Motor)
90 - Mota base nhamba: Inoratidza kunze dhayamita ye90mm

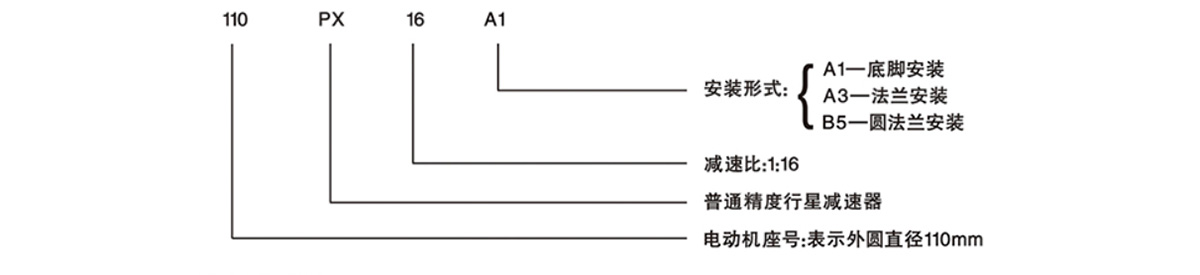

Reducer Model

A1- fomu yekuisa: A1 kuisirwa tsoka, A3 kuisirwa flange, B5 inotenderedza flange kuisirwa
16 - Kuderedza reshiyo: 1:64
PX - Ordinary Precision Planetary Reducer
110 - Mota base nhamba: Inoratidza dhayamita rekunze re90mm

Iyo technical data yemagetsi mota

Kumhanya (r/min)	Torque(mN.m)	Model	Simba	Yakatemerwa Kumhanya (r/min)	Install	Rated Voltage		Deredza Mwero	Mashoko
750	260	55ZYT	29	3000	A3	24V:55ZYT51 27V:55ZYT52 48V:55ZYT53 110V:55ZYT54		4
187.5	740							16
47	21200							64
12	5900							256
500	390							6
83	1660							36
14	7180							216
750	450	70ZYT01	50	30000		24		4
		70ZYT02				27
		70ZYT03				48
		70ZYT04				110
1500	380	70ZYT05	85	6000		24		4
		70ZYT06				27
		70ZYT07				48
		70ZYT08				110
750	630	70ZYT51	70	3000		24		4
		70ZYT52				27
		70ZYT53				48
		70ZYT54				110
1500	540	70ZYT55	120	6000		24		4
		70ZYT56				27
		70ZYT57				48
		70ZYT58				110
187.5	1270	70ZYT01	50	3000		24		16
		70ZYT02				27
		70ZYT03				48
		70ZYT04				110
187.5	1780	70ZYT51	70	3000		24		16
		70ZYT52				27
		70ZYT53				48
		70ZYT54				110
47	3670	70ZYT01	50	3000		24		64
		70ZYT02				27
		70ZYT03				48
		70ZYT04				110
750	360	70SZ01	40	3000		24	24	4
		70SZ02				27	27
		70SZ03				48	48
		70SZ04				110	110

PS akatevedzana general kumhanya ratio
Nhamba 1: 4 , 6
Sekondari: 16 , 24 , 36
Nhamba 3: 64 , 96 , 144 , 216
Nhamba 4: 256\384\576\864\1296

90PX yakatevedzana isiri-yakajairwa kumhanya chiyero
Chikamu 1: 3
Nhamba 2: 9 , 12 , 18
Nhamba 3: 27 , 48 , 54 , 72 , 108
Nhamba 4: 81 , 162 , 192 , 288 , 324 , 432 , 648

110PX yakatevedzana isiri-yakajairwa kumhanya chiyero
Nhamba 1: 5
Nhamba 2: 20 , 25 , 30
Nhamba 3: 80 , 100 , 120 , 125 , 150 , 180
Level 4: 320 , 400 , 480 , 500 , 600 , 625 , 720 , 750 , 900 , 1080

Zvisiri-standard zvinoderedza zvakadai seyero yekumhanya, kumhanya, saizi yekuisa, nezvimwe zvinogona kugadzirwa

Sarudzo muenzaniso
Mushandisi anogona kusarudza nenzira kwayo simba uye modhi yeanoderedza zvinoenderana neiyo chaiyo yekushanda sisitimu uye chimiro chemutoro nekureva kune zvinotevera zviri mukati.
1.Zvinoenderana neiyo torque yekuremedza uye nekumhanya kwekubuda kweiyo inoderedza, simba rinodiwa rinogona kuverengerwa neinotevera formula: P = T n/kh.
Mune fomula: P- yakabuda simba WT - mutoro torque Nm, sarudza n- kubuda kumhanya r/min zvinoenderana nehunyanzvi data sheet.
K- mutoro nguva dzose 9560 η - kutapurirana kushanda zvakanaka, kusarudzwa kubva patafura inotevera

Transmission Ratio

Transmission ratio(i)	4(6)	16(36)	64(216)	256(1296)
η	0.76	0.72	0.68	0.65

2.Gavhuna wemota anogona kusarudzwa kuti aone iyo isina nhanho yekumhanyisa shanduko yeinoderedza kubva kuO kuenda kune yakayerwa kumhanya.
3. Zvinoenderana neiyo chaiyo yekushanda sisitimu uye kutakura hunhu, iyo sevhisi coefficient inogona kusarudzwa maererano nesevhisi coefficient tafura.Mushure mekuverenga, iyo inodiwa simba reinodzikisira rinogona kutariswa, uye zvinoenderana neinodiwa yekubuda nekukurumidza, iyo inoderedza modhi inogona kusarudzwa nekutarisa kune yehunyanzvi data tafura.

Kushanda Index Sheet

Zuva Rekushanda Nguva	Load Level
	Avhareji yakatsiga	Zviripakati nepakati	Kukanganisa kwakanyanya
12	1	1.25	1.75
24	1.25	1.50	2

Semuenzaniso: kana mutoro wacho wakaenzana uye wakagadzikana, motori inodiwa yakayerwa simba ndeye 40W, iyo yakatemerwa voltage ndeye 110V, iyo yekubuda yekumhanyisa ratio ndeye 4, uye nguva yekushanda pazuva ndeye 12h, ipapo 40W inosarudzwa.Kana chimiro chemutoro chiri pakati nepakati vibration:
Zvadaro: a.Tarisa kune sevhisi coefficient tafura kuti usarudze sevhisi yakatevedzana se 1.25.Simba rinodiwa W=40W*1.25=50W
b.Tarisa iyo tekinoroji data sheet yekusarudza J70SZ54P*4

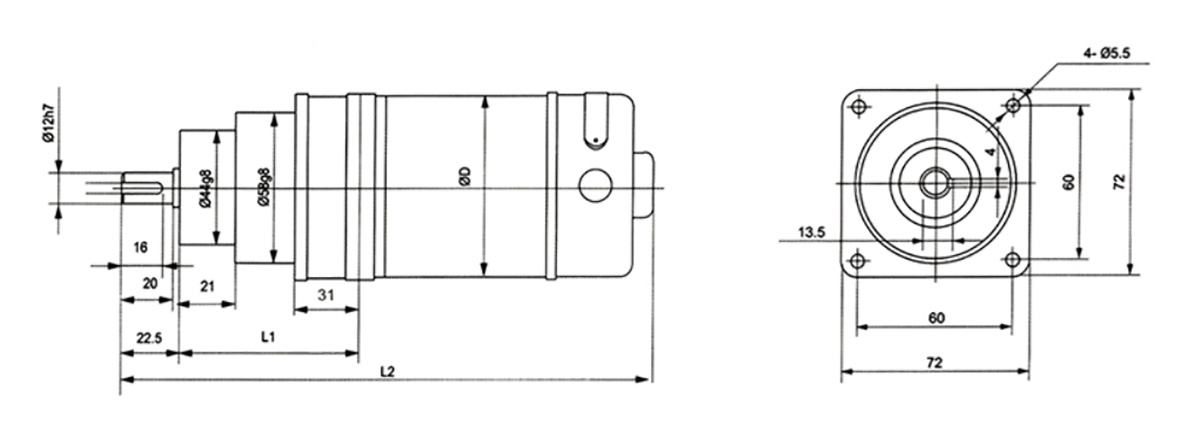

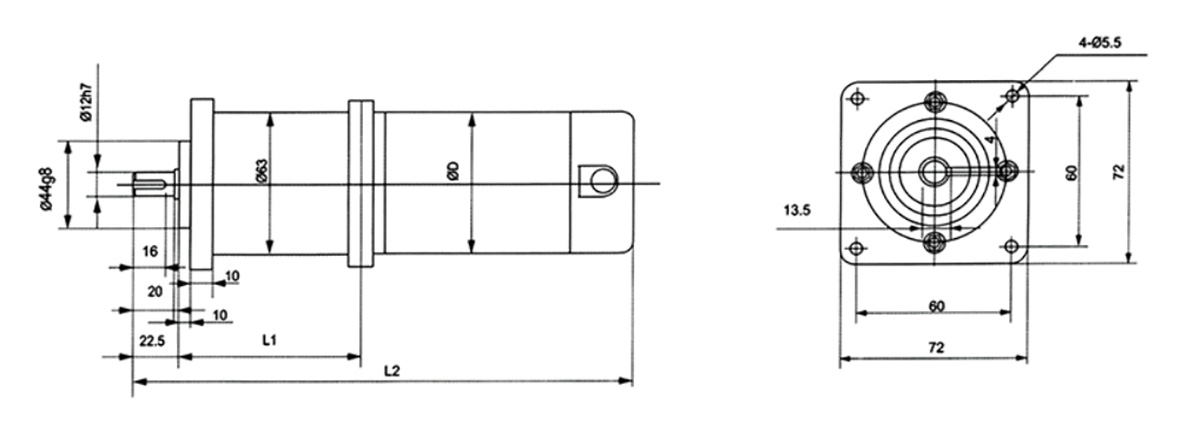

70PX pamberi flange
