kicheni chef yekubikira robhoti yekubikira muchina switched kusada mota Featured Image

kicheni chef yekubika robhoti yekubikira muchina wakachinja kusada mota

Tsanangudzo Pfupi

800W yakakwira yekumhanya yakachinja kusada mota uye mutyairi 35000rpm kumhanya musanganiswa wemba yekushandisa mota

1. Kushanda kwepamusoro-soro: Muhuwandu hwayo hwekugadzirisa hutsika, huwandu hwehuwandu hunoita zvishoma ne10% yakakwirira kudarika mamwe masisitimu ekugadzirisa kukurumidza, uye kushanda kwepamusoro kunonyanya kuoneka pakuderera uye kusingaverengeki mutoro.

2. Yakasiyana-siyana yekuraira kwekumhanya, kushanda kwenguva refu pakumhanya kwakaderera: Inogona kumhanya pasi pemutoro kwenguva yakareba kubva pazero kusvika kune yakanyanya kumhanya, uye tembiricha yekukwira kwemota uye controller yakaderera pane iyo yakatarwa. load.

3. Yakakwira yekutanga torque, yakaderera kutanga ikozvino: kana iyo yekutanga torque inosvika 150% yeiyo yakatemerwa torque, iyo yekutanga ikozvino inongova 30% yeiyo yakatarwa ikozvino.

Tumira email kwatiri

Product Detail

Product Tags

Motor Parameters

Kushanda Voltage	DC300V
Rated current	2.8±10%A
Maximum ikozvino	5.4A
Kutanga voltage	DC23V~25V
rated power	700±10%W
Rated speed	35000±10%RPM
Simba risina basa	<100W
nhamba yematanda	2
torque	0.2NM
kubudirira	80%±10%
commutation	Axial CW
noise	96dB MAX, <30cm
uremu	1.68Kg
kubereka	2 bhora mabearings
control	Horo sensor
Install	flange gomo

Motor Structure

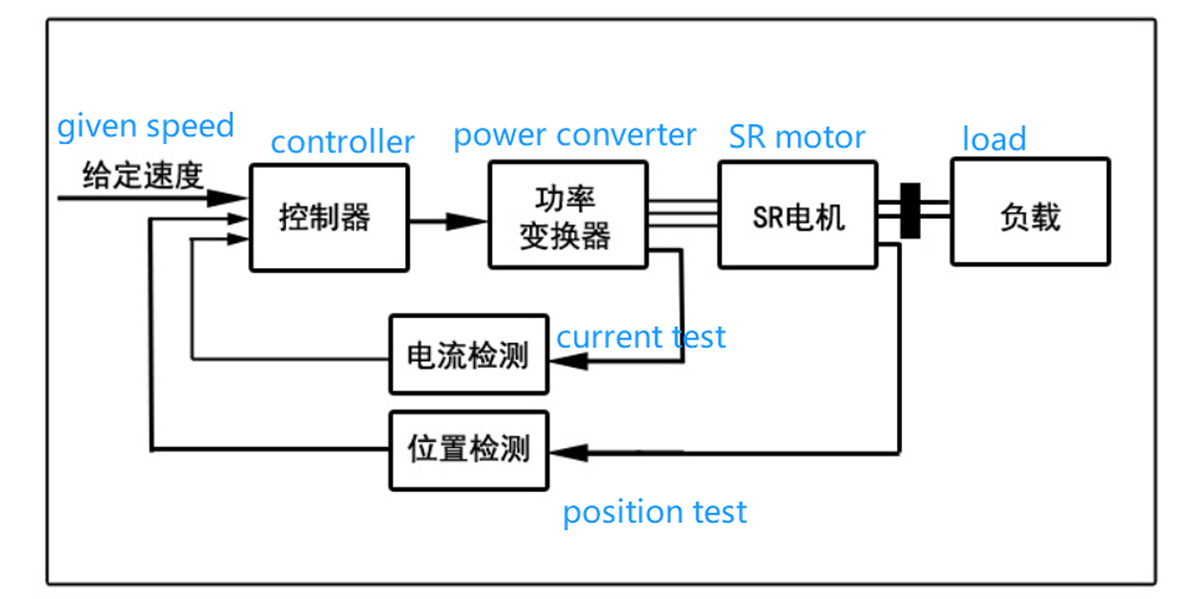

1. Iko kuumbwa kweiyo switched kusada mota drive system
Yakachinja kusada mota dhiraivha system (SRD) inonyanya kuumbwa neyakachinja kusada mota, inoshandura simba, controller uye detector.

2.Yakachinja kusada mota
SR motors inogona kugadzirwa kuita single-phase, maviri-phase, matatu-phase, mana-phase uye akawanda-chikamu zvimiro zvine nhamba dzakasiyana dzechikamu, uye kune rimwe-zino chimiro padanda uye akawanda-mazino chimiro padanda, axial mhepo. gap, radial air gap uye axial air gap.Iyo radial hybrid air gap chimiro, yemukati rotor uye yekunze rotor chimiro, SR mota pazasi-nhatu-chikamu kazhinji haina yekuzvitanga kugona.Nhamba huru yezvikamu zvinobatsira kuderedza torque kuchinja, asi zvinotungamirira kune yakaoma chimiro, akawanda makuru ekuchinja michina uye kuwedzera mutengo.Parizvino, maviri-chikamu 6 / 4-pole chimiro uye mana-chikamu 8 / 6 -level chimiro chinoshandiswa zvakanyanya.

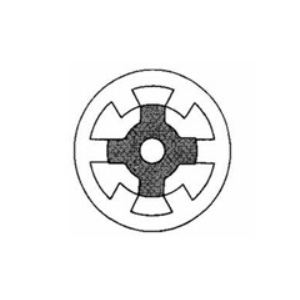

Nguva dzose chimiro 3-chikamu
6/4 polar SR mota

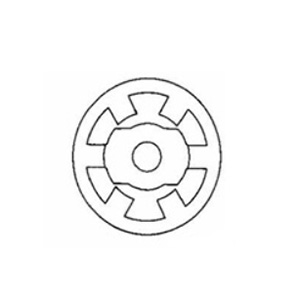

3-chikamu 6/2
polar SR mota

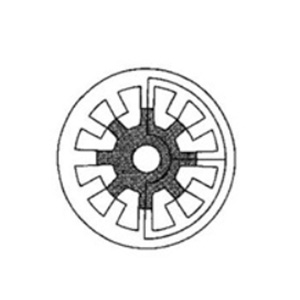

3-chikamu 6/8
polar SR mota

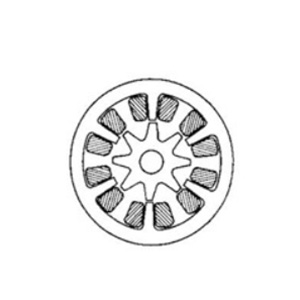

3-chikamu 12/8
polar SR mota

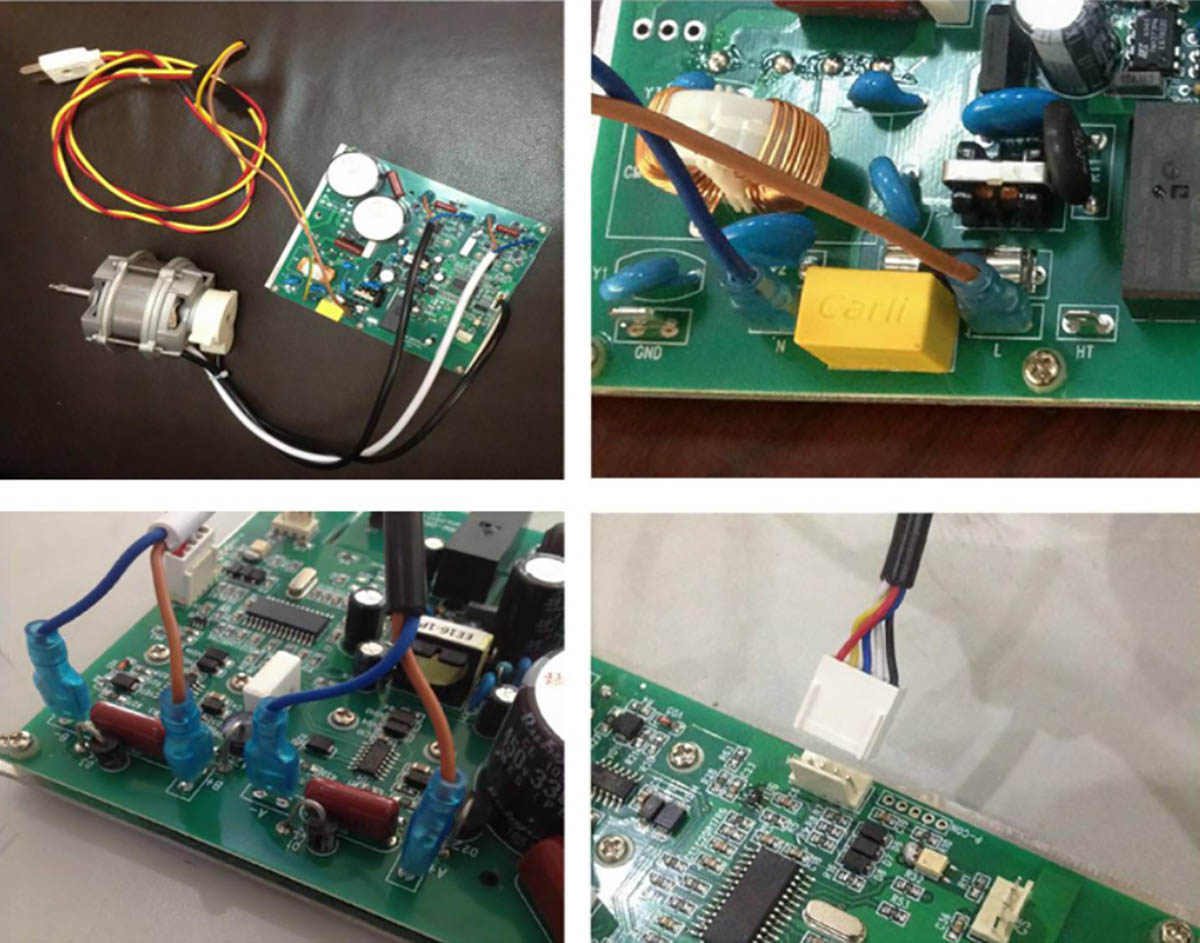

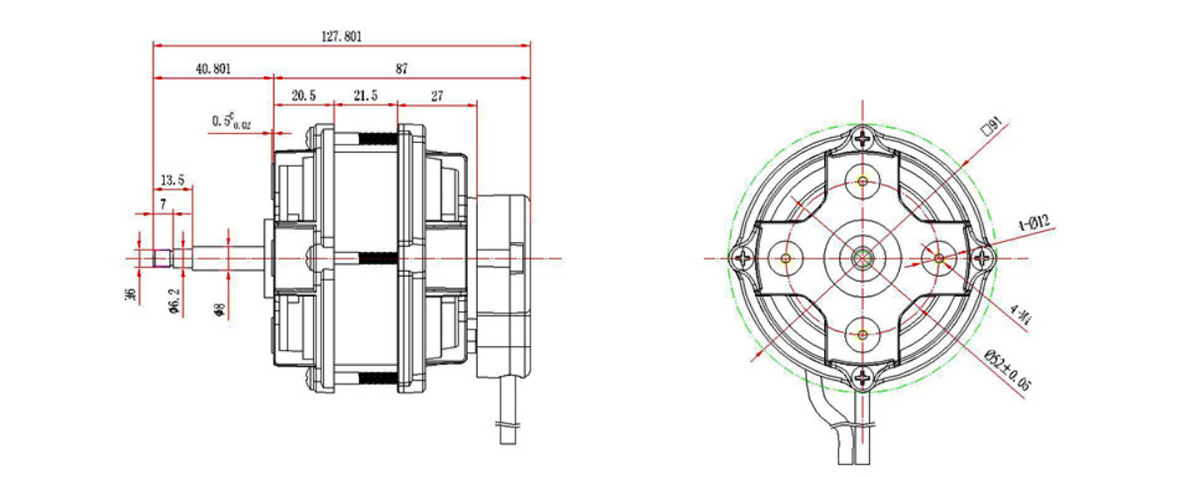

3. Yemuviri wiring dhizaini yemota uye mutyairi

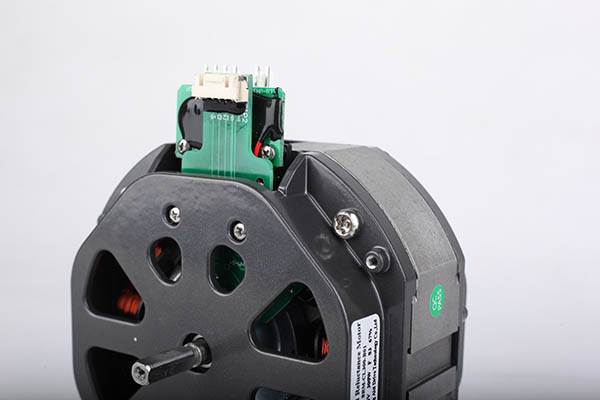

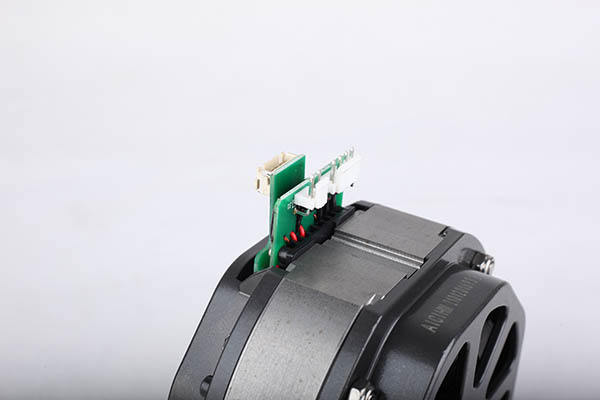

Product Photo

Motor phase wiring

Dema (Brown /A+ Bhuruu /A-), Ichena (Brown /A+ Bhuruu /A- ), kureba kwewaya L=380 ± 50mm
Horo waya wiring:
Tsvuku ( +5V), nhema ( GND), yero ( SA ), bhuruu ( SB), chena ( SC ), kureba kwemutsara L= kureba kwemutsara L=380 ± 50mm
Kuchengetedza: 5 ℃ ~40 ℃, humidity <90%
Insulation class: F
Coil isina mutswe inotendeuka kwemaminetsi matatu pa130% yevolti yakayerwa.
Upenyu hwekushanda: maawa 2000 pasi pemamiriro ekushanda.
Iyo axial displacement inofanirwa kuve isingasviki 0.02mm kana mota ichimhanya.

Motor maitiro

1.Yakakwira sisitimu inoshanda: Muhupamhi hwayo hwekumhanya kudzora huwandu, iko kushanda kwese kunenge 10% yakakwira kupfuura mamwe masisitimu ekumhanya, uye kushanda kwepamusoro kunonyanya kuoneka pakumhanya kwakaderera uye kusiri-yakayerwa mutoro.
2.Yakasiyana-siyana yekumhanyisa mutemo, kushanda kwenguva refu pakumhanya kwakaderera: Inogona kumhanya pasi pemutoro kwenguva yakareba muhupamhi kubva ku zero kusvika kune yakanyanya kumhanya, uye tembiricha yekukwira kwemota uye controller yakaderera pane iyo yakatemerwa mutoro.
3.Yakakwira yekutanga torque, yakaderera yekutanga ikozvino: kana iyo yekutanga torque inosvika 150% yeiyo yakayerwa torque, yekutanga ikozvino inongova 30% yeyakayerwa ikozvino.
4. Inogona kutanga uye kumira kazhinji, uye shandura pakati pekutenderera mberi nekudzoka shure: inogona kutanga nekumira nguva nenguva, uye kuchinja pakati pekutenderera mberi nekudzoka shure kazhinji.Kana paine braking unit uye simba rekubhureki richisangana nenguva inodiwa, kutanga-kumisa uye kumberi-reverse switching inogona kusvika kanopfuura ka1,000 paawa.
5. Yakasimba yekuremedza simba: kana mutoro wacho wakakura zvakanyanya pane yakatarwa mutoro kwenguva pfupi, kukurumidza kunodonha, iyo yakanyanya kubuda simba ichachengetwa, uye hapazove neanopfuura chiitiko.Kana mutoro uchidzokera kune zvakajairika, kukurumidza kunodzokera kune yakatarwa kasi.
6.Mechanical simba uye kuvimbika kwakakwira kupfuura mamwe marudzi emotor.Iyo rotor haina magineti asingagumi uye inogona kuve nepamusoro inobvumidzwa tembiricha inokwira.
