SDJ Series ACIM Controller (3KW)
SDJ yakatevedzana mota controller (3KW) tsananguro yechigadzirwa
SDJ yakatevedzana AC controller mutyairi akagadzirirwa AC mota dzemagetsi mune yakaderera voltage.Semidziyo yekutyaira yekuvimbika kwepamusoro uye torque hombe asynchronous mota, yakagadzirwa neina quadrants vector yekudzora nzira, inogona kudzora mota kumhanya & torque chaizvo.Inoshandiswa zvakanyanya mumotokari yakachena yevatakuri, yakaderera-inomhanya A00 kirasi yevatakuri mota, yemagetsi yekuona nzvimbo, yemagetsi yekutsvaira mota, yemagetsi logistic mota, nezvimwe.
SDJ yakatevedzana AC controller inotora dhijitari drive control neDSP semusimboti, uye nhanho yekudzivirira inosvika IP67.Iyo controller inotora asynchronous mota ine yakakwirira kuvimbika uye yakakwira torque sechishandiso chekutyaira, chine hunhu hudiki hukuru, huremu huremu, kuvimbika kwakanyanya uye nekukurumidza kupindura.Nesimba remhinduro basa rekuwedzera mileage yekufamba;uye akawanda ekudzivirira madhizaini akadai seashoma ikozvino, pamusoro pazvino, pamusoro petembiricha, yakakiyiwa rotor, pfupi pfupi, nezvimwe.
Features
●Iye controller anotora iyo yeGerman DSP, yepasirese mainstream dhijitari dhiraivha seyepakati control chip, iyo inobatsira kuvaka yakanaka chikuva chemotor control algorithm.
●Nekushandisa iyo yakakwira simba MOSFET chubhu yemagetsi mudziyo, inogona kuona iyo inoshanda shanduko yesimba.
●Yakawanda kuchengetedza kuchengetedza kweCAN interface uye kuchengetedza certification manejimendi yelithium bhatiri BMS.
●Tsigira kupfupika kwedziviriro yedunhu (chikamu - pasi, chikamu - chikamu, chikamu - chitubu), kuremedza, pamusoro tembiricha, pamusoro pekudzivirira kwemagetsi.
●Tekinoroji yakavimbika uye inochinjika yekuvandudza mabhureki inogona kuvandudza mileage yekutyaira, kusangana nezvinodiwa nemutengi, kunyangwe mune yakaderera yekumhanyisa kutyaira.
●Uchishandisa tekinoroji yemicro-kufamba & inononoka kudzika uye tekinoroji-inobata chikomo pamateru, kugona kukwira kwakasimba, kugadzikana-kubatira chikomo, kutanga kwakasimba.
●Gamuchira yakanakisa optimization algorithm & frequency 0 kusvika 300 HZ, kuderedza ruzha uye vibration amplitude.
●Yakakwana yekudzivirira kukanganisa basa, iyo buzzer inoyeuchidza marudzi ese ekukanganisa, iri nyore kugadzirisa.
●Inotora CAN-bhazi tekinoroji yekudzikisa wiring yakabatana, iyo parameter inogona kugadziridzwa uye inorongeka online.
●Inotora dhizaini inoenderana kuita kuti vhoriyamu idiki uye huremu hureruke.Self-yekudzidza basa, kurerutsa kuisirwa uye debugging matanho.
Kumakambani emotokari: kurodha zviri nyore, kusanetseka-pasina mushure mekutengesa
●Kuchinja kwakasimba uye kuzvidzidzira basa
●Zvigadzirwa zvefekitari zvakakurumbira, mhando yakavimbika
●Self-detection fault alarm function
Kune vashandisi: ruzivo rwakasimba, indulgent gallop
●Kutyaira kwakatsetseka, kutanga kwakasimba, uye kukurumidza kwakasimba
●Torque yakakura, kugona kukwira kwakasimba, anti-slip pamateru
●Mhinduro yesimba, wedzera rwendo rwekufamba, wedzera hupenyu hwebhatiri
Chigadzirwa: dhizaini yehunyanzvi, kufunga
●Kuita kwakagadzikana
●Yakakwana kuchengetedza uye kuchengetedza dhizaini
Tsanangudzo
| Controller Model | SDJ-7.5KW | |||
| Electric | Kupinza (DC/V) | 72V | 96V | 144 V |
| Hukuru hwazvino kubuda (AC/A) | 400A | 320A | 250A | |
| Yakatemerwa ikozvino kubuda (AC/A) | 115A | 78A | 52A | |
| Simba guru rinobuda (KW) | 30 | 30 | 30 | |
| Max frequency kubuda (Hz) | 300 | 300 | 300 | |
| Kushanda nharaunda tembiricha range (℃) | -30°C--+55°C | |||
| Kuchengetera nharaunda tembiricha renji (℃) | -40°C---+70°C | |||
| IP kirasi | IP67 | |||
| Insulated performance | 72V/96V Kupinza & kubuditsa kune goko DC1000V, inodonha ikozvino 0.05mA, insulated kuramba 20MΩ | |||
| 144V Input & yakabuda kune goko DC2100V, inodonha ikozvino 2.1mA, insulated kuramba 1MΩ | ||||
| Controller kunyatsoshanda | 0.98 | |||
| Kutonhodza nzira | Naturel kutonhora / Mhepo kutonhora | |||
| Kudzora nzira | Vector control | |||
| Motor Type | Asynchronous mota | |||
| Vibration standard | GB/T2423 | |||
| Nzira yekukurukurirana | CAN | |||
| Huremu (Kg) | 4kg | |||

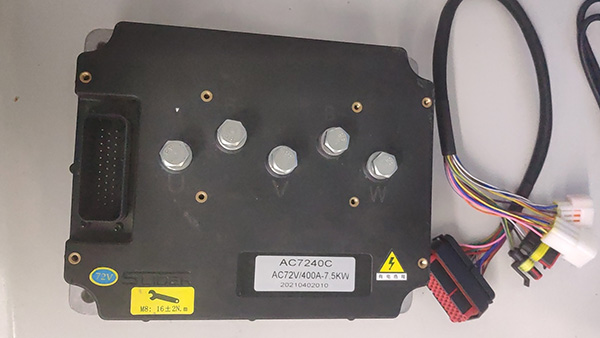

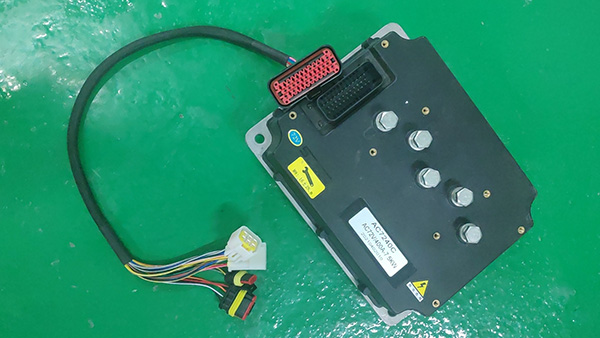

Product Photo

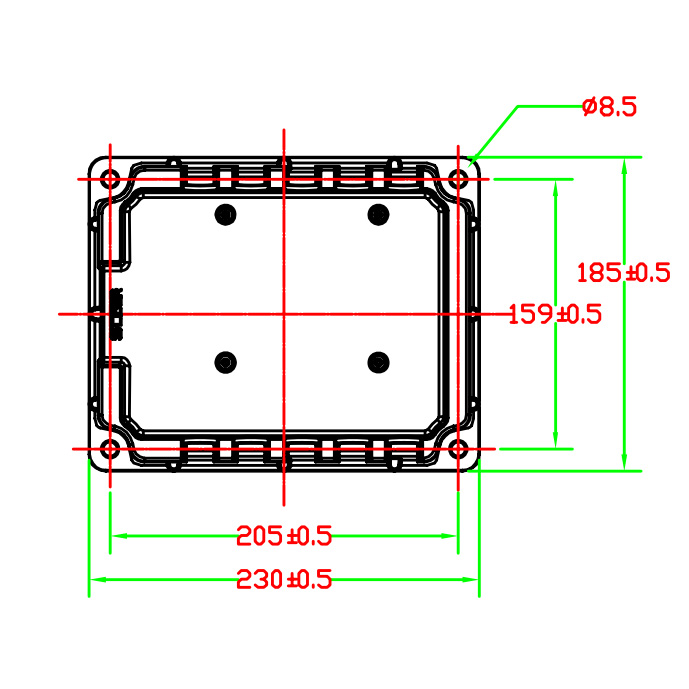

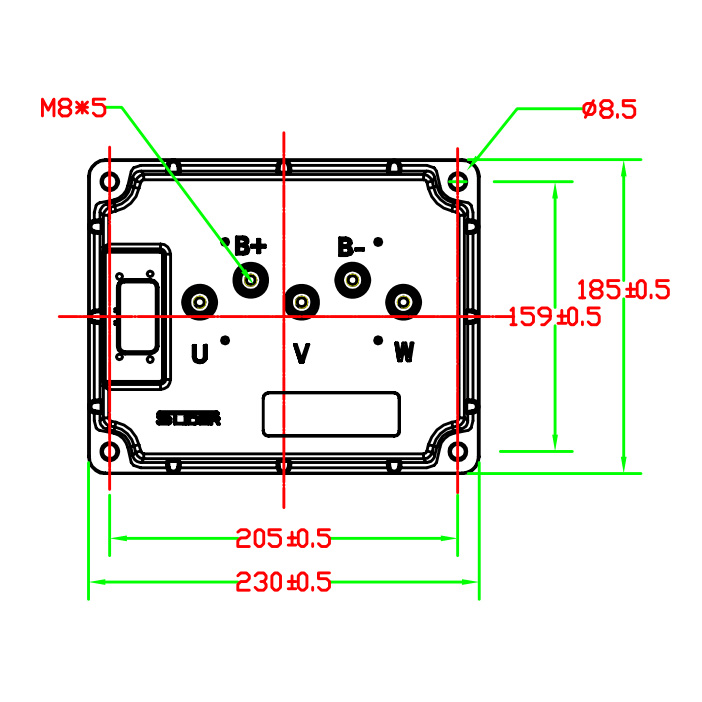

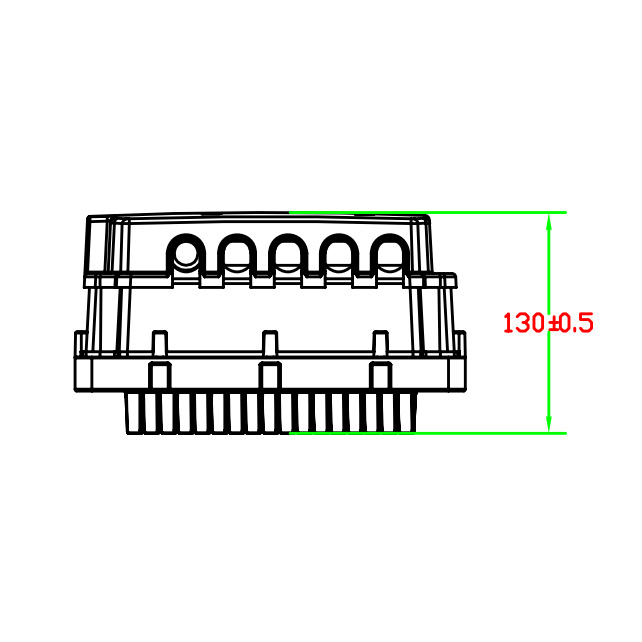

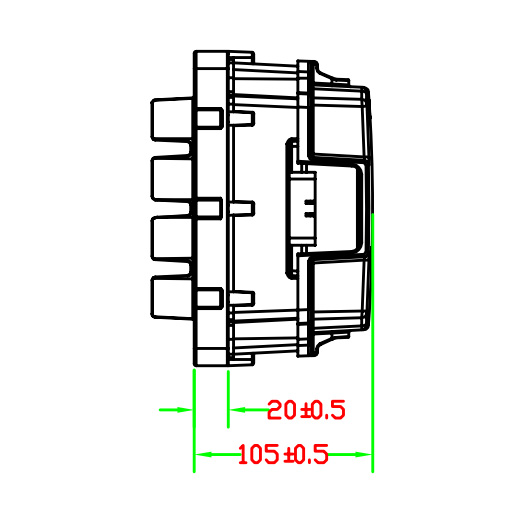

Dimension Drawings
